| Mounting |
Ceiling |
| Voltage (V) |
36V |
| Hertz |
50/60Hz |
| Class |
III |
| IP |
23 |
| Power (W) |
11 |
| Light source |
COB LED |
| Light source included |
Yes |
| Incandescent wire |
650 |
| Lifespan |
50.000h L90 B10 |
| Luminous Flux (lm) |
580 |
| Color temperature (K) |
3000K |
| Dimmable luminaire (W) |
Yes |
| Opening angle degrees |
15 |
| Photobiological risk |
2 |
| CRI |
90 |
| Driver included |
No |
| Supply current |
350 mA |
| Recommended driver On/Off |
98310136 |
| Luminaires per On/Off driver |
1 |
| Recommended DALI driver |
98310136D |
| Luminaires per DALI driver |
1 |
| Recommended TRIAC driver |
98310114C |
| Luminaires per TRIAC driver |
1 |
| Recommended CASAMBI driver |
98310538 |
| Luminaires per CASAMBI driver |
1 |
| Structure material |
Aluminium + Aluminium |
| Structure finish |
White+Grey |

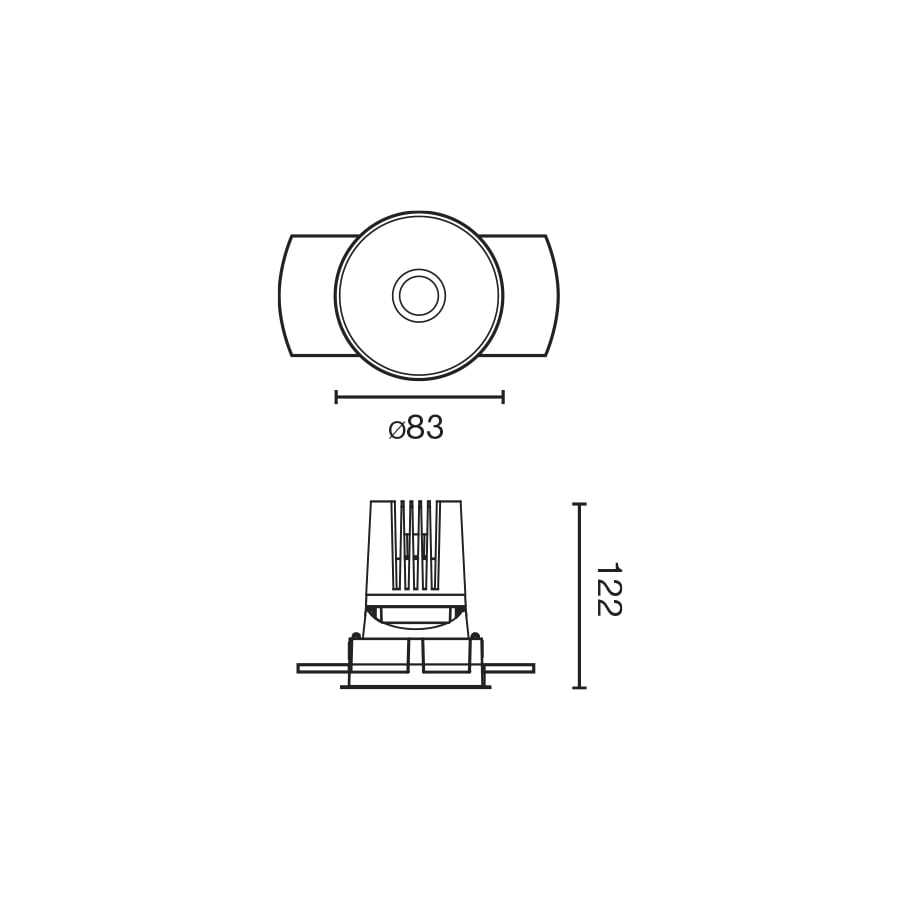

| Cut-out Size for Recessed Mount |
85 |
| Minimum Recessed Height (mm) |
150 |
| Maximum Ceiling Thickness (mm) |
30 |

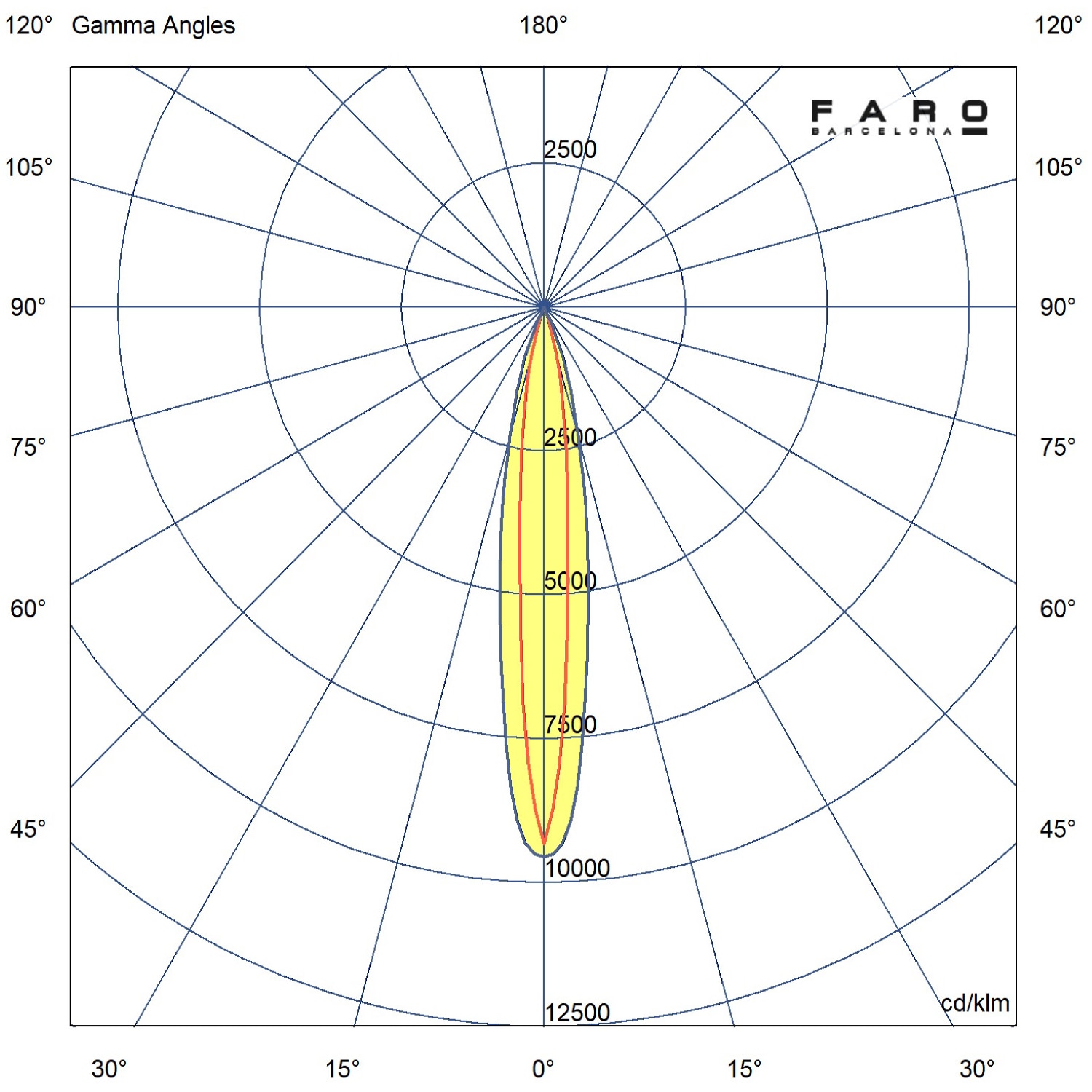

 Photometric |
